Available in: With/Without RF & Voice

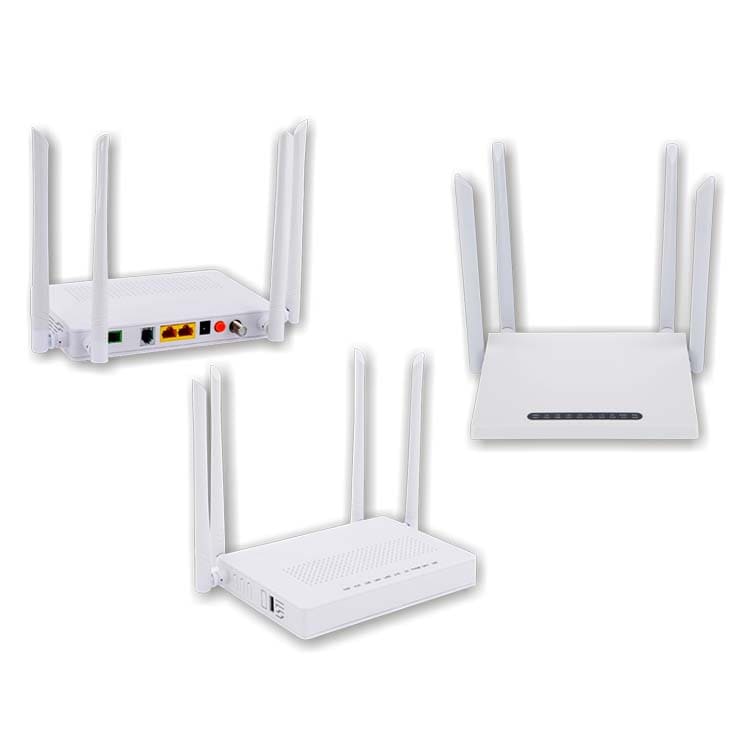

H Optical Network Unit SingleBand Xpon Gpon Ont 1Ge+2Fe 2.4G Wifi

Features

  • Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
  • Compliance with IEEE802.11b/g/n/ac 2.4G & 5G WIFI standard
  • Support IPV4 & IPV6 Management and transmission
  • Support TR-069 remote configuration and maintenance.
  • Support Layer 3 gateway with hardware NAT
  • Support Multiple WAN with Route/Bridge mode
  • Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
  • Support IGMP V2 and MLD proxy/snooping
  • Support DDSN, ALG, DMZ, Firewall and UPNP service
  • Support docking compatibility with all OLT available Indian Market.
  • Support automatically adapt to the EPON or GPON mode used by the peer OLT
  • Support 2.4 and 5G Hz dual band WIFI
  • Support multiple WIFI SSID
  • Support Easy Mesh WIFI function
  • Support WIFI WPS function.
  • Support multiple wan configuration.
  • Support WAN PPPoE/DHCP/Static IP/Bridge mode.
  • Support CATV video service

Product Construction

ms Unit Specifications
PON
PON standard. EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface SC/PC connector, 1 GPON/EPON interface(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0 ~ +5dBm
Transmission distance: 20KM
Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength nm Tx1310, Rx 1490
Interface data 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Indicator LED SYS, REG, LINK/ACT
Operating condition Operating temperature: -5 ~ +55
Storing condition Storing temperature: -30 ~ +60
Humidity % 10~90(non-condensing)
Power supply V DC 12V,0.5A adapter
Power consumption W ≤4
Dimension mm 90×82×23(L×W×H)
Net weight Kg 0.1
