Available in: With/Without RF & Voice

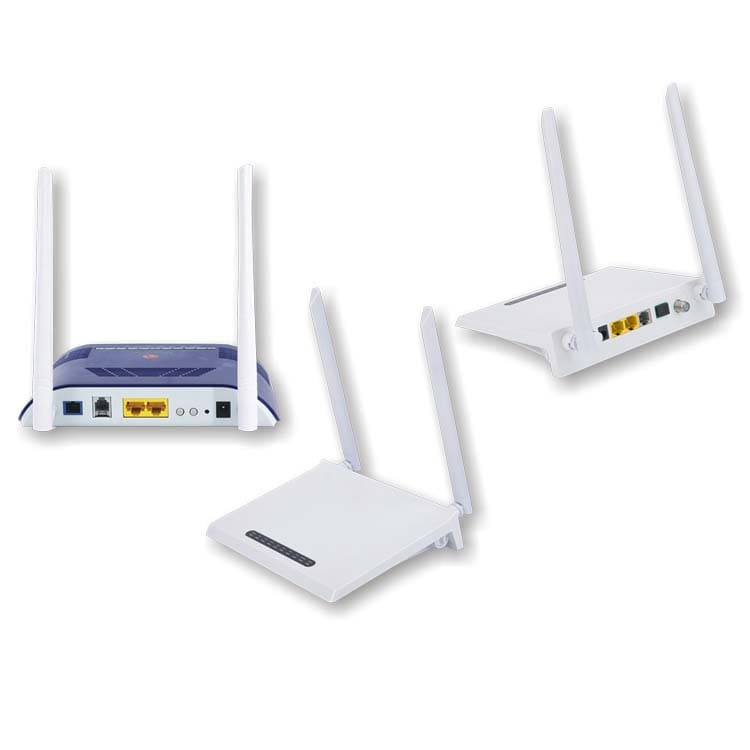

FTTH ONT SingleBand XponGpon Ont 1Ge+2Fe 2.4G Wifi
Features
- Plug and play, auto configuration, and auto firmware upgrade technology.
- Full compliance to IEEE 802.3ah specification & OAM function
- Support 802.11n 2T2R speed up to 300Mbps
- Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES, TKIP encryption.
- Support Console/ Telnet/ NMS management interface for ease of operation and maintenance
- The WAN port supports bridge / router mode. Fully compatibility with all OLT available in indian market.
- Full speed non-blocking switching. 2K MAC address table.
- 64 full range VLAN ID
- Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
- Integrated port monitoring, port mirroring, port rate limiting, port g
- Support auto polarity detection of Ethernet ports (AUTO MDIX). Integrated IEEE802.1p
- QoS with four level priority queues.
- Support IPv4 IGMP snooping and IPv6 MLD snooping.
- Support bridge, router and bridge/router mixed mode.
Product Construction
| ms | Unit | Specifications |
|---|---|---|
| PON | ||
| PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
| Optical interface | SC/PC connector, 1 GPON/EPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0 ~ +5dBm Transmission distance: 20KM |
|
| Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490 |
| Interface | data | 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Indicator | LED | SYS, REG, LINK/ACT |
| Operating condition | ℃ | Operating temperature: -5 ~ +55 |
| Storing condition | ℃ | Storing temperature: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V,0.5A adapter |
| Power consumption | W | ≤4 |
| Dimension | mm | 90×82×23(L×W×H) |
| Net weight | Kg | 0.1 |
