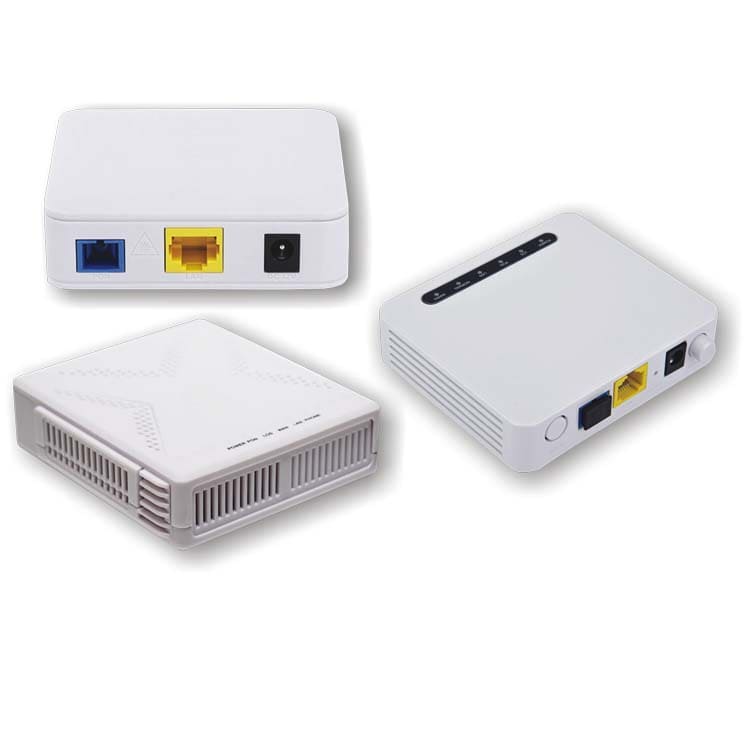

XPON ONU ZTE
Home
XPON ONU ZTE
Available in: With/Without CATV, Wi-fi
XPON-ONU SPEC
1GE ZTE Chip
Features
HGU ONU, bridging and routing modes can be set
ZTE chip with 32M RAM
Compatible with popular EPON OLT
Support loop detection, IGMP, IGMP snooping
Support port speed, support for storm suppression
Support Telnet, CLI, OAM and Web management
Support NAT, Firewall function
Support remote software upgrade
Product Construction
ms
Unit
Specifications
PON
PON standard.
EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface
SC/PC connector, 1 GPON/EPON interface(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0 ~ +5dBm
Transmission distance: 20KM
Speed
Gbps
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength
nm
Tx1310, Rx 1490
Interface
data
1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Indicator
LED
SYS, REG, LINK/ACT
Operating condition
℃
Operating temperature: -5 ~ +55
Storing condition
℃
Storing temperature: -30 ~ +60
Humidity
%
10~90(non-condensing)
Power supply
V
DC 12V,0.5A adapter
Power consumption
W
≤4
Dimension
mm
90×82×23(L×W×H)
Net weight
Kg
0.1
‹
›
